Performance profile

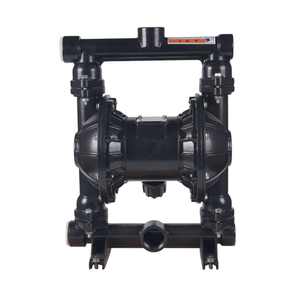

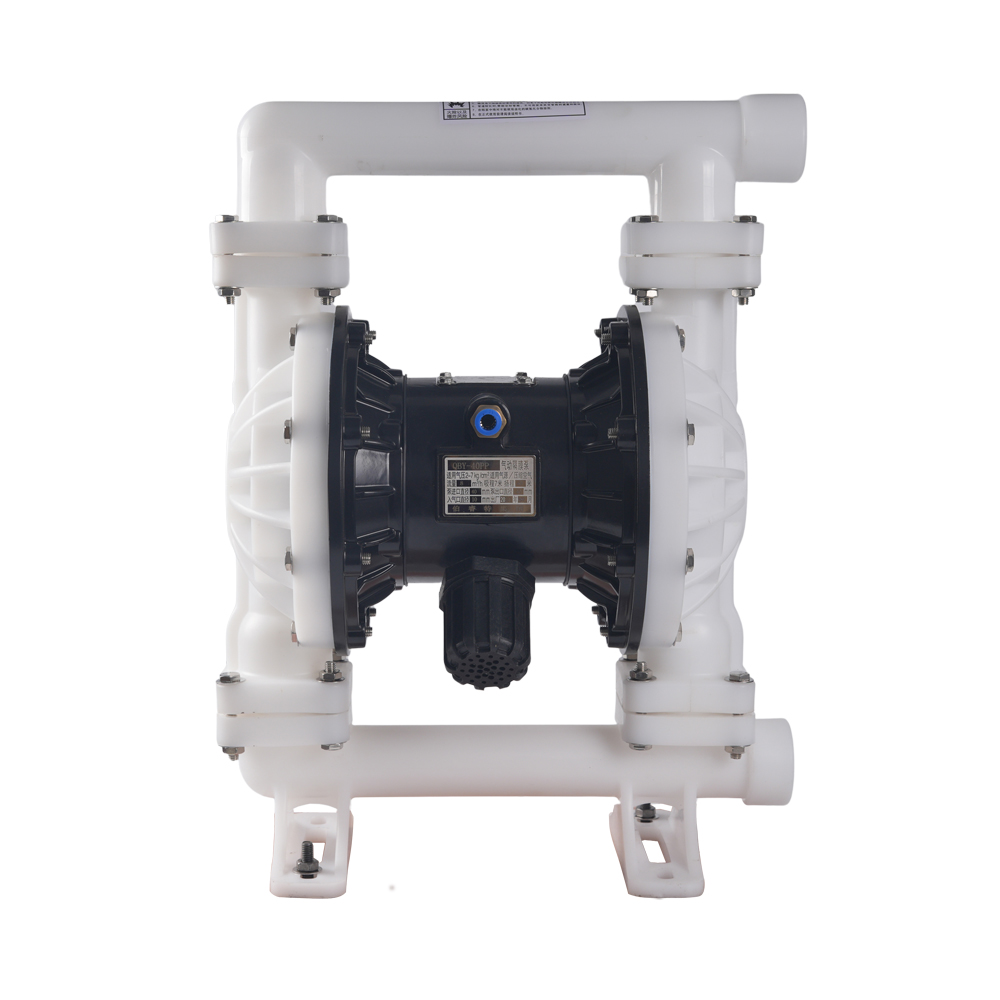

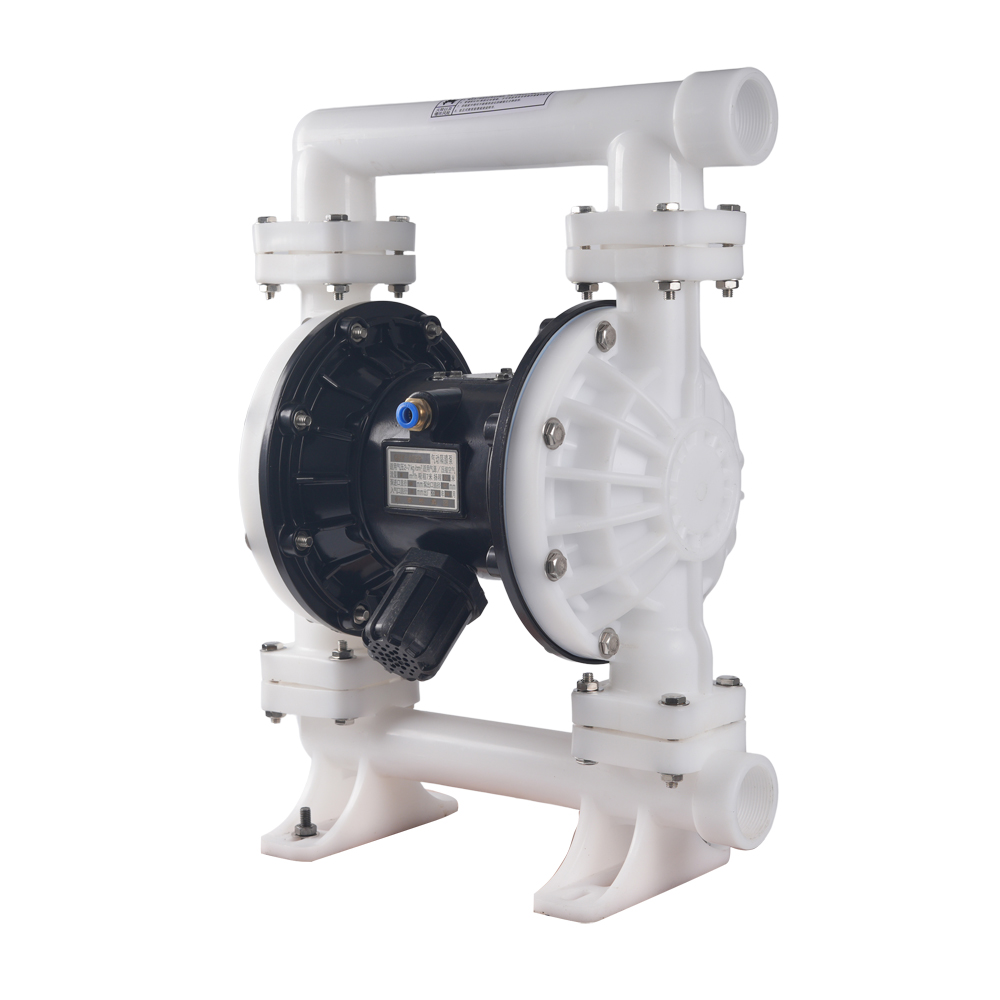

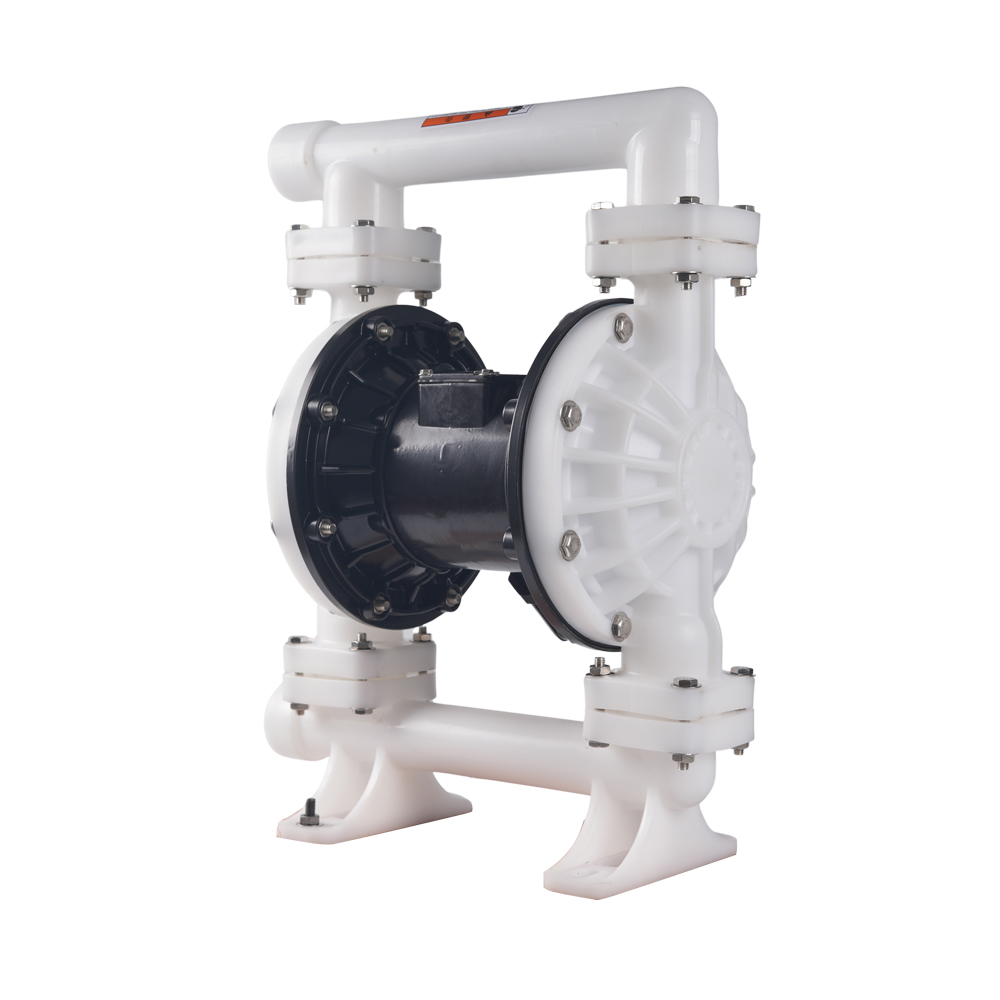

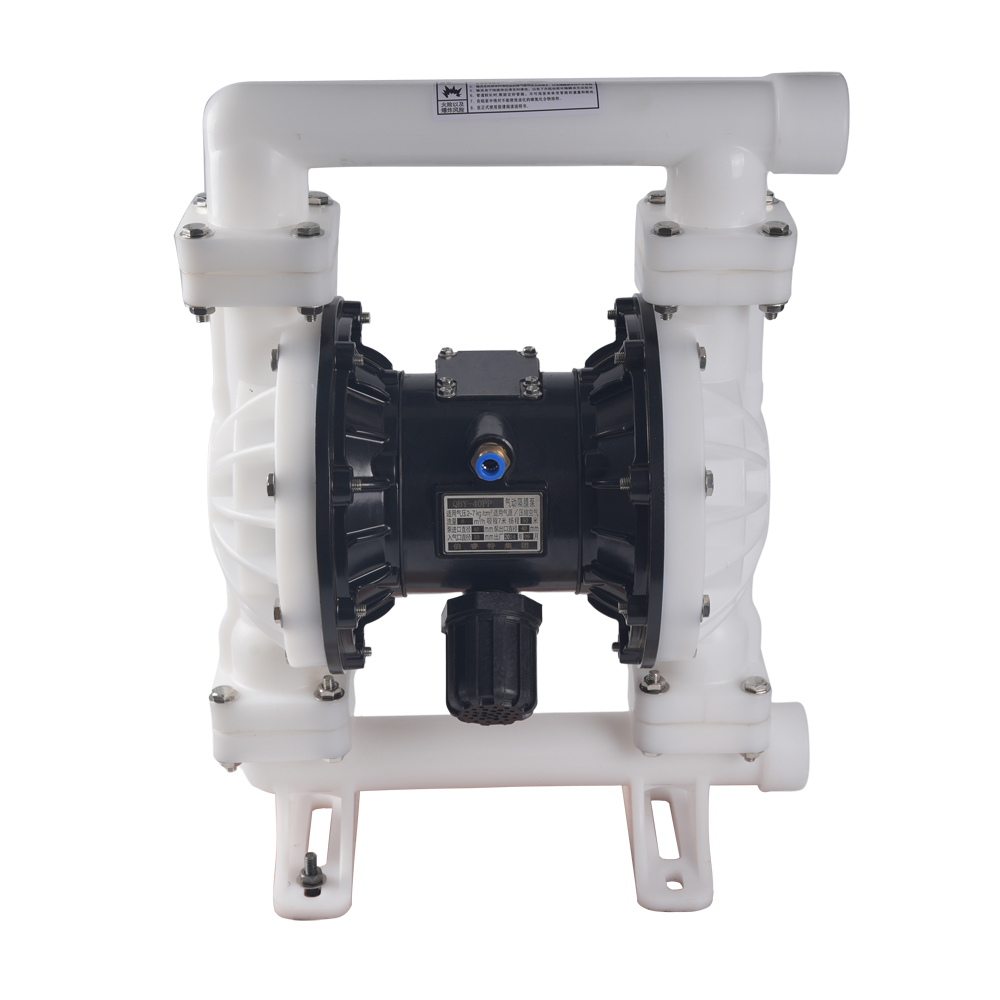

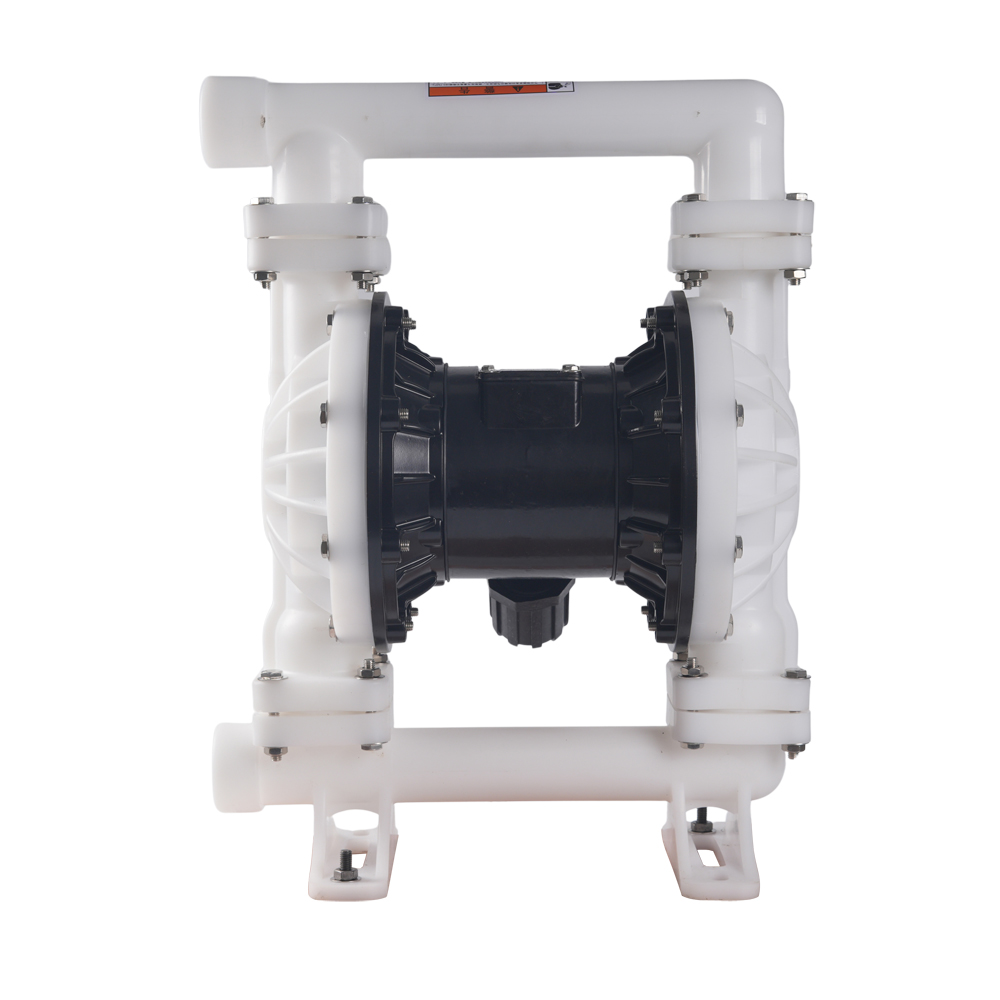

QBY-K air operated double diaphragm pumps not only can exhaust the flow liquid, but also can convey some uneasyflowed medium, with the merits of self pumping pump, diving pump, shield pump, slurry pump and impurity pump etc.
1. lt's unnecessary to pour the drawing water, the suction lift reaches 7m height, the delivery lift reaches 70 mlength and the export pressure≥6kgf/c㎡;
2.Wide flow and good performance, The diameter allowed to pass the max grain reaches 10mm. The damage is very lessto the pump while exhausting the slurry and impurity.
3. The delivery lift and flow can pass the pneumatic valve open to realize the stepless ad, justment (the pneumatic pressure adjustment is between 1-7kgf/c㎡);
4. This pump has no rotary parts and no bearing seals. The diaphragm will completely separate the exhausted mediumand pump running parts, working medium. The conveyed medium can' t be leaked outside. Thus it will not cause theenviromental pol lution and human body safety dangerous while exhausting the toxin and flammable or corrosivemediun.
5.No electriCity. lt's safe and reliable while using in the flammable and explore places.
6.ltcan be soaked in medium.
7.it' s convenient to use and reliable to work. only open or close the gas valve body while starting, or stopping.Even if no medium operation or pausing SUddenly for l0ng time because of accident matters, the pump Will not bedamaged caused by this. once over-loading, the pump will automatically stop and possesses the selfprotectionfunction, When the load recovers normally, lt also can start autcmat ically.
8.Simple structure and less wearing parts. This pump is simple in structure, installation and maintenance. The mediumconveyed by the pump will not touch the matched pneumatic valve and coupling lever. etc. Not like other kindspumps, the performnce will drop down gradually because of the damages of rotor. gear and vane etc.
9.lt can transmit the adhesive liquid(the viscosity is below 10000 centipoise).
10.This pump needn't the oil lUbricant. Even if idling, it has any influence to the pump. This is a characteristicof this pump.
Main usage
The pump can suck the peauut, pickles, tomato slurry, red sausage, chocolate,hops and syrup etc.
The pump can suck the paint, pigment,glue and adhesive etc.
The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
The pump can suck various gr inding materials, corrosive agent and clean the oil dirt etc.
The pump can suck various toxin and flammable or volatility liquid etc.
The pump can suck various wedge water, ement slurry and mortar etc.
The pump can suck various strong acid, alkali and corrosive liquid etc.
lt can be used as a front-step transmission device of the solid and liquid separat ion equi pment. Performance parameter
Valve body material: 5 kinds (CPVC, UPVC, PPH, FRPP, PVDF), valve seat PTFE/FPM/EPDM Pneumatic actuator accessories (solenoid valve, limit switch, filter, double acting non-explosion-proof) DC24V
