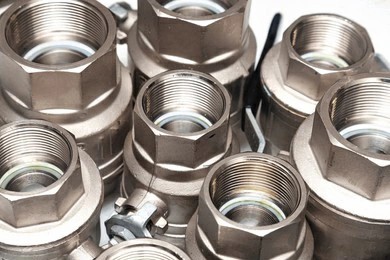

A ball valve is a type of valve that regulates the flow of a gas or liquid through a pipe. It consists of a fluid-impermeable, perforated, and swiveling ball. The ball at the middle is what permits or blocks the passage of fluids. This basic design is simple but highly efficient in regulating the flow of fluids in the home and in the industry. A ball valve can regulate the flow of water in a pipe to regulate the hot water flow in the home. Similarly, a ball valve can enable the flow of pressurized gases in the factory. Components of a ball valve include; . The body. This houses the ball, . The stem: this links the ball to the actuator. . The seat. The seat ensures the tighter, fluid proof seal around the ball, which prevents it from dripping when the valve is shut. A handle, or .
The ball is the central component of the valve. It has a through hole, also known as the bore, towards its center. When the bore is in line with the pipe, the valve is open, allowing fluid to pass. When the ball’s hole is at right angles to the pipe, the valve is closed.
The stem is a rod connecting the ball to the actuator, which can be a manual handle or an automatic control system. By acting on the stem, a user can make the ball inside the valve turn.
The seat, commonly constructed of materials like Teflon or polymers, forms a seal between the ball and the valve body. This ensures no leakage and reliable shutoff.
The handle is mounted on the stem to allow manual rotating of the ball. In an automatic setting, actuators are used to actuate the position of the ball for timed or remote operation.
A ball valve operates by a quarter turn mechanism. This means that the valve opens or closes upon a 90-degree rotation of the ball. The position of the ball determines whether the valve is open or closed.
The open valve is when the ball is turned to be in line with the flow path. The fluid or gas is allowed to pass through the hole in the ball creating a free flow.
The closed valve is when the ball is turned at a ninety-degree angle to shut off the flow. There is no bore that allows the flow, and also, the solid end is facing the line, blocking the flow.
Ball valves provide excellent flow control. The valve can sometimes be adjusted to open up partially, allowing a controlled amount of flow to pass through. However, most ball valves are more effective when either entirely closed or wide open; operating the valve partially will cause the seats to wear and leak over time.
Several variations of ball valves are available to cover a range of applications, including:
Full-Port Ball Valve: A full-port ball valve is one in which the ball’s diameter is the same as the inside of the pipe diameter, ensuring maximum flow with the least pressure drop.
Reduced-Port Ball Valve: A reduced-port ball valve has a reduced ball size, reducing the reduced diameter of the flow path, which can reduce flow rate and create high-pressure drops.
V-Port Ball Valve: A V-port ball valve has a V-shaped ball bore that enables even more accurate control over flow, especially in modulating flow.
Due to their design and ease of operation, ball valves can be used in various applications. Ball valves are commonly used in the following industries and systems:
Water and Wastewater Treatment: Ball valves are found in water and chemical supply systems.

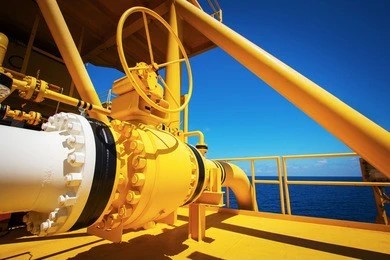

Oil and Gas: In oil and gas rigs and refiner plants, ball valves help control oil and gas flow and maintain pressure in the area.
HVAC Systems: Ball valves in HVAC flow control help regulate the flow of water and refrigerants and air circulation.
Food and Beverages: Stainless steel ball valves are widely used in the food and beverage industry to regulate milk, water, juice, and other beverage flow.
Ball valves are praised in multiple industries for several reasons ranging from their simplicity to the ease of maintenance:
Durability: As there are not many moving parts, they hardly wear out. Therefore, the lifecycle of a ball valve is substantial.
Operability: The ability to move the ball in a quarter turn makes it easier and faster to open and close. Thus, they can be frequently used in those applications, where shutoff should be swiftly performed.
Leak-proof: The contact area between the ball and the seat does not allow leakage. In particular, this is crucial in the case of using the valve in a full shutoff position.
Low Maintenance: As ball valves are easy structurally, the maintenance cost and the service are low as well. Once they have been installed, they can work for a while.
Ball valves represent essential elements in modern fluidic systems. There is no alternative to them when it comes to simplicity, reliability, and multi-purpose use. Thus, whether at a factory or at home, they have to be used when dealing with liquid substances.
