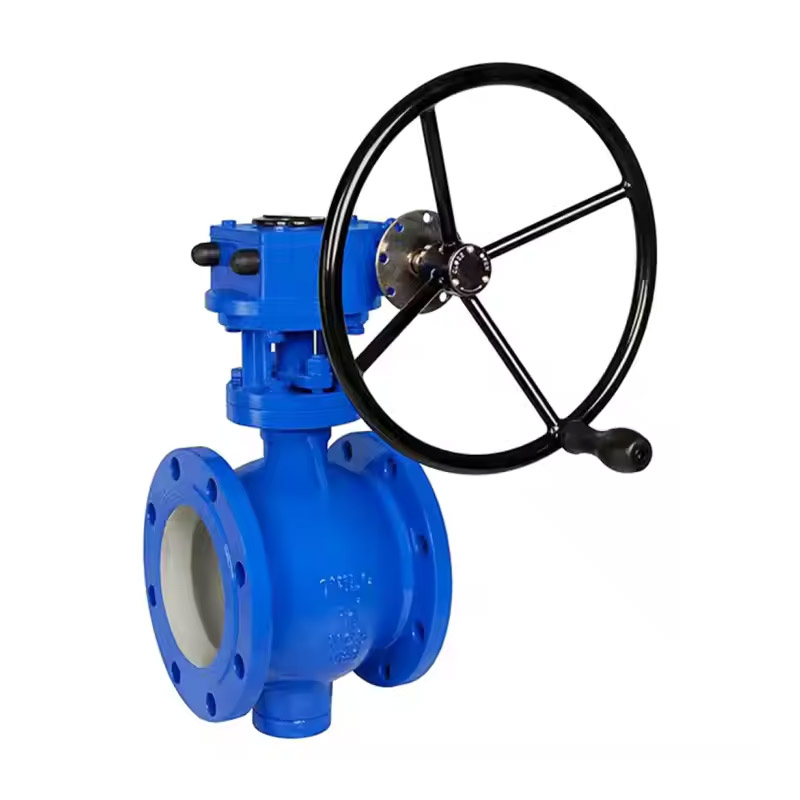

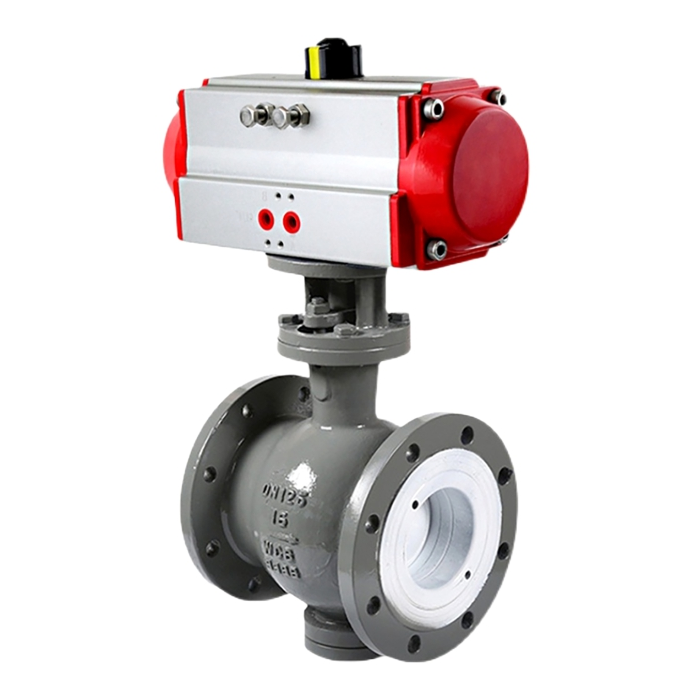

Ceramic semi-ball valve including the general advantage of semi-ball valve,sealing parts adopts structure ceramic material, with high hardness(around HRC88),
ball and seat are machined by advanced ball machine technology and equipment from Taiwan for reach fully sealed. Unilateral forced sealing structure with
advantage of good abrasion resistance, open cavity, no block, flexible on-off thus en-sure no residual during on-off process, suitable for cut and control of
slurry, coal, water slurry, granule etc.
Through way: Uni-directional seal type and eccentric type ball is away from body when valve open with direct through without block.
Easy on-off: Ball surface is way from seat when open with small torque and, flexible operation. When valve closed, semi-ball cut the seat and scratch residual
and adhesive for ensure close seal.
Eccentric structure can make sealing face self-compensating abrasion(Note: Drive device limitation must be adjusted, it can get abrasion compensation
required), keeping valve seal performance with long life time and safe operation.
Valve is metal seal structure, seal parts are abrasion resistant ceramic with advantage of high hardness(around HRC88), scratch-resistance, abrasion reistance.
| Design and Manufacture | JB/T10529 | |
| Connection End | Face to face | FR Standard |
| Flange End | GB/T9113 | |
| Inspection & Test | JB/T9092 | |
| Mark | GB/T12220 | |
| Delivery | GB/T12252 | |
Note: For more size, please contact our engineer
